It can rapid determination of COD in waste water, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, index can be stored, print the current and historical data, quick, accurate data.
Online Message
Features
Features
Technical Specifications
Standard Configuration
Data download
-It can directly test COD, ammonia nitrogen, total phosphorus and total nitrogen; it can expand many indexes, such as chromaticity, turbidity and heavy metals and so on
-Chinese operating interface, large screen guidance menu liquid crystal display
-Full-automatic wave length, intellectualized design, automatic calibration after starting-up
-Tungsten lamp and deuterium lamp were independently controlled, which can prolong the life of deuterium lamp
-The instrument can calculate and store curve based on standard samples
-Among the built-in 100 curves, 30 standard curves do not need to adjust, can use directly, and other curves can automatically repair and store
-Built-in printer and USB interface can connect the computer making online operation (optional)

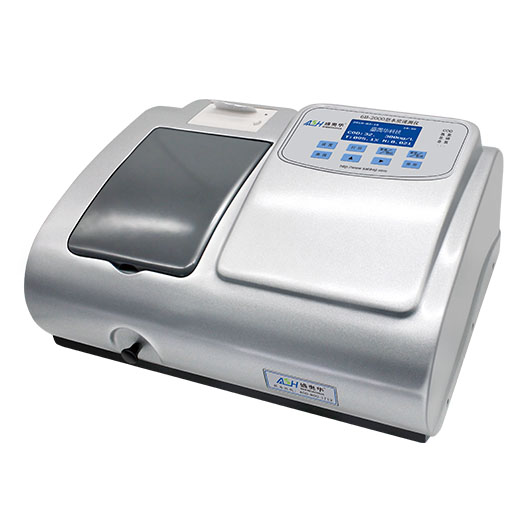

-It has the function of top-grade UV-light spectrophotometer

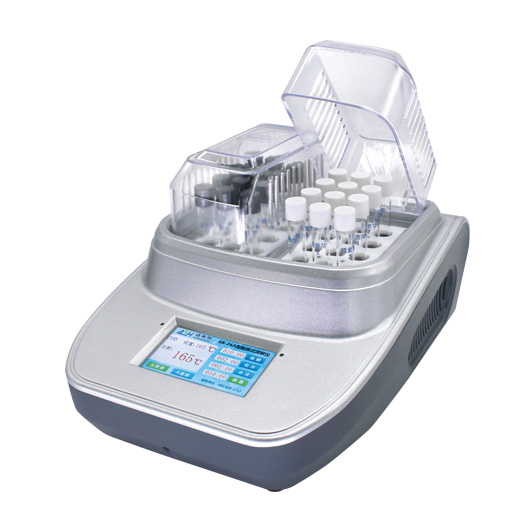

-Blowout control cover of digest instrument adopts materials with transparency, heat resistance and acid and alkali resistance, so it is safe and reliable
-Dual-temperature area can digest two indexes of water samples with different temperature at the same time, which can save time
-It has the functions of setting temperature, modifying timekeeping operating line and storing data
-It can adjust and store temperature and time at will
Measuring range | COD: 5-50mg/L 30-6000mg/L (subsection) ammonia nitrogen: 0.01 - 100mg/L (subsection) Total phosphorus: 0.001 - 8mg/L (subsection) Total nitrogen: 0.01 - 40mg/L (subsection) Turbidity: 0-200NTU |
Measuring error | ≦±5% |
Repeatability | ±5% |
The stability of luminosity | ≦0.001lA/10min |
Wavelength coverage | 190-1100 nm±1nm |
Data storage | Five million data |
The number of curve | One hundred pieces |
Temperature control range | Indoor temperature-200℃ |
The temperature of digestion | 165/123±0.5℃ |
The time of digestion | 10/30 minutes |
Dispose sample | 24/30 pieces/batches (the configuration according to the requirement of users) |
Resist chlorine interference | {cl-} < 1200mg/l ; {cl-} < 4000mg/l |
Working power supply | AC220V±10%/50Hz |
Product size | 360x280x 100mm |
Weight | 3 Kg |
Intelligent digest instrument (24 holes), cooling bath frame, dedicated solid reagent, several dedicated reaction tubes, cuvette frame and semi-automatic filling injector…
