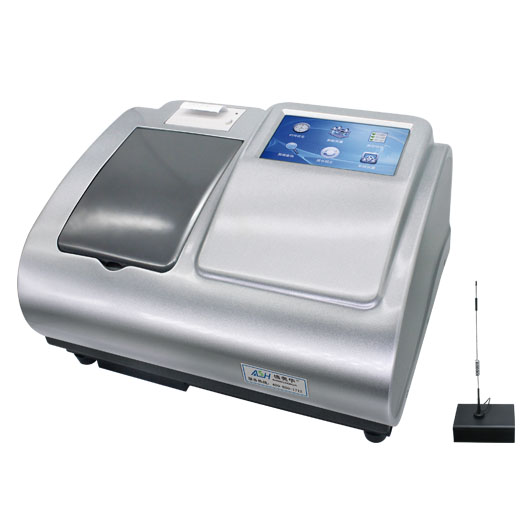

6B-3000A Intelligent multi-parameter water quality tester

This instrument is a national patent product, which is widely used in measurement. Adopt high - end touch screen menu operation mode, automatic measurement method; With the latest Internet of things technology, the PC and mobile terminals can be used to view the data and monitor it in real time.

Online Consulting

Online Message

Features

  • Features
  • Technical Specifications
  • Standard Configuration
  • Data download

Features

Technical Specifications

Standard Configuration

Data download

-The operational interface is combined with Chinese and individual icon, and adopts high-end seven-inch colorful touch screen

-The measuring method includes full-automatic and semi-automatic method, and can reduce the error of traditional manual machine

-Can read data directly, and directly test many indexes, such as COD, ammonia nitrogen, total phosphorus, total nitrogen, chromaticity, turbidity and heavy   metals and so on

-Full-automatic wave length have humanization design, can test items with one button, and its operation is simple and quick

-Users can use national standard sample to set up curve by themselves

-It can expand to the application for top-grade UV-light  spectrophotometer

-It has 100 standard curves, and high-capacity storage chip which can store five million groups of data

-Built-in printer can print current and historical data in real time

-USB interface can connect computer to make operation (optional)


Measuring dip angle

COD

Ammonia nitrogen

Total phosphorus

Total nitrogen

Turbidity

Measuring range

5-50mg/L

30-600mg/L

(Subsection)

0.01-100mg/L

(Subsection)

0.001-8mg/L

(Subsection)

0.01-40mg/L

(Subsection)

0-200NTU

Measuring error

≦±5%

Repeatability

±5%

The stability of luminosity

≦0.001A/10min

Wavelength coverage

190-1100 nmilnm

Data storage

Five million pieces

Data storage

Built-in 8G storage chip can stores five million data

Temperature control range

indoor temperature-200℃

Digestion temperature

165/123±0.5℃

Digestion time

10/30minutes

Dispose sample

24 / 30 pieces/ batches (the configuration according to the requirement of users)

Resist chlorine interference

{cl-} < 1200mg/l ; {cl-} < 4000mg/l

Working power supply

AC 220V±10%/ 50Hz

Product size

435x330x170 mm

Weight

3Kg


Intelligent digest instrument, cooling bath frame, dedicated solid reagent, several dedicated reaction tubes, cuvette frame and semi-automatic filling injector…
