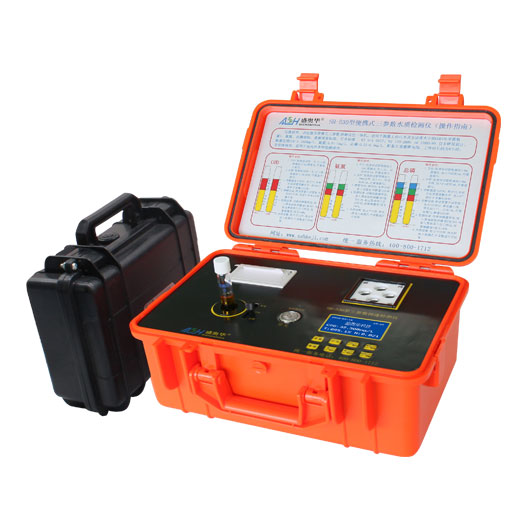

SH-530 Portable COD detector

This instrument is the company's newly developed SH series detector, using colorimetric tube color comparison method, can quickly determine the COD indicators in wastewater. Supporting portable box material is hard, pressure and drop resistance, with mobile power, convenient field, on-site operation.

Online Consulting

Online Message


  • Features
  • Technical Specifications
  • Standard Configuration
  • Data download


Technical Specifications

Standard Configuration

Data download

-Chinese operation interface, large screen guide menu LCD display
-Colorimetric tube colorimetric method
-Portable DC battery
-Full screen page/view/modify
-3 independent timing function keys, current temperature/arrival time blinking reminder, over-temperature automatic protection
-Memory 5 standard curve pieces, 95 can be set, saved and modified manually
-Built-in printer for printing current data
-Multi-parameter, direct determination of COD, ammonia nitrogen, total phosphorus indicators

-National standard samples can be used for automatic calculation of curves
-Cold light source, narrow band interference, light source life of 100,000 hours

-Display mode: All Chinese LCD
-Temperature control accuracy: 165/122±1°C
-Heating time: reach the set temperature within 10min
-Timing range: 1-199min
-Timing error: 10min ± 0.1s
-Temperature control range: room temperature -200 °C
-Measurement error: ≤±5%
-Measurement range: COD: 5-6000mg/L (segment)

                    Ammonia: 0.01-100mg/L (segment)
                    Total phosphorus: 0.001-8mg/L (segment)

-Wavelength range: 610nm±1nm
-Batch processing: 4/lot/10min
-Number of curves: comes with more than 100 standard curves
-Storage data: 5 million
-Anti-chloride interference: {cl-}<1200mg/l; {cl-}<4000mg/l
-Working temperature: -5~38°C
-Temperature/Timer Setting: Keyboard Setting Digital Indicates Minimum Setting 1°C/1min
-Source: DC 24V Portable Ion Battery
-Product Size: 350*280*170mm
-Total weight: 5.8KG

Prefabricated reagents, special reaction tubes, mobile power supplies, etc.


Internet of things WIFI customer platform management operating system
