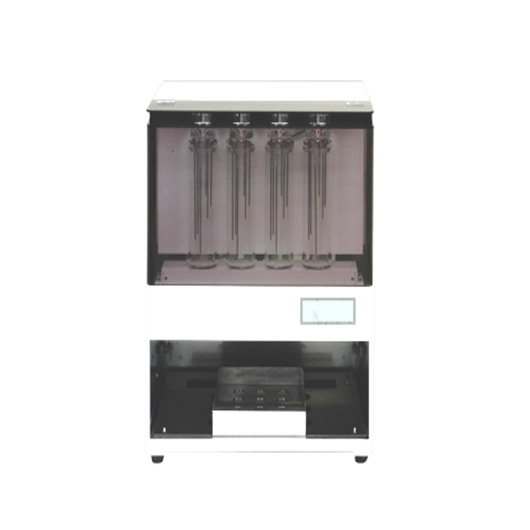

Four-channel auto sample dilution instrument (single type)

Intelligent BOD automatic analyzer and BOD-KO-02 type can combine with four-channel auto sample dilution instrument (single type) Dilution-KO-04.

Online Consulting

Online Message

Product description

  • Product description
  • Features
  • Standard Configuration
  • Data download

Product description

Features

Standard Configuration

Data download

when test a large number of sample, it use the traditional method to dilute sample by manual operation, there is trival operation, exposing sample in the outside world for long time, human error and other problems, so Dilution-KO-04 of automatic Dilution adopts four-channel intelligent design, which can dilute 12 samples at the same time, with short operational time, minimizing the cross contamination of the sample.


The instrument also can combine with other instruments to realize full-automatic high-speed dilution of samples.


Accord with standard: HJ505-2009 dilution and inoculation method; JISK0102 21 ; GB7482-87


Liquid level measurement

Electric and level detector

Injection nozzle

Homotaxial (move forward and backward) electricity

Stored program control

PLC

Operation

Liquid crystal touch screen

Boundary dimension

W530xD450xH700

Weight

About 40kg

Supply voltage

AC200V   50Hz

Diluted section

Can set two-section and three-section dilution according to demand

Diluted multiplying power

Can set multiplying power with initial section (N), two-section is 2N, and three-section is 4N

The number of sample

8 samples (3-section), 12 samples (2-section)

The time of dilution

Less than 15 minutes
